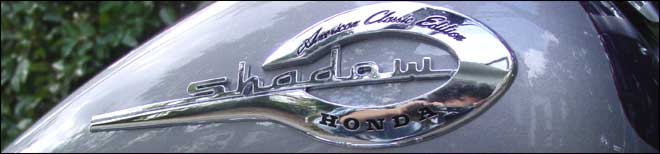

Photo: Honda Shadow Tank
ENGINE
Engine Type 745cc liquid-cooled 52-degree V-twin
Displacement 745cm (45.4 cu. in.)
Bore and Stroke 79.0mm x 76.0mm
Compression Ratio 9.0:1
Valve Train SOHC; three valves per cylinder
Carburetion Two 36mm diaphragm-type CV
Ignition CD with electronic advance, two spark plugs per cylinder
DRIVE TRAIN
Transmission Wide-ratio five-speed
Final Drive Chain
CHASSIS / SUSPENSION / BRAKES
Front Suspension 41mm fork; 5.1-inch travel
Rear Suspension Dual shocks with five-position spring-preload adjustability; 3.5-inch travel
Front Brakes Single 296mm disc with twin-piston caliper
Rear Brake Drum
Front Tire 120/90-17
Rear Tire 170/80-15
DIMENSIONS
Wheelbase 63.6 inches
Seat Height 27.6 inches
Dry Weight 505 pounds
Fuel Capacity 3.7 gallons, including 0.95-gallon reserve
OTHER
Model ID VT750CD
Year 2002
Original Purchase Date 28 June 2002
My Purchase Date 20 December 2003
